1.44 inch 14PIN 65K/262K Color SPI TFT LCD Display Screen COG ST7735S Drive IC 128(RGB)*128 Wide Viewing Angle

25 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Size: 1.44 inch
    LCD Type: TFT
    Outline Dimensions: 29.5*36.5*2.5mm
    Active Area: 25.5*26.5mm
    Dot Pitch: 0.199*0.207mm
    Number of Dots: 128(RGB)*128
    Controller: ST7735S
    PIN NO.: 14P
    Pin Pitch: 0.5mm
    Display Color: 65K/262K
    Backlight: White LED
    Polarizer Mode: Transmissive
    Data Interface: 4-wire SPI interface
    Backlight Voltage: 3.3V
    Operating Temp.: -20 ~ 70 degree
    Storage Temp.: -30 ~ 80 degree
    Viewing Direction: 12 O’clock

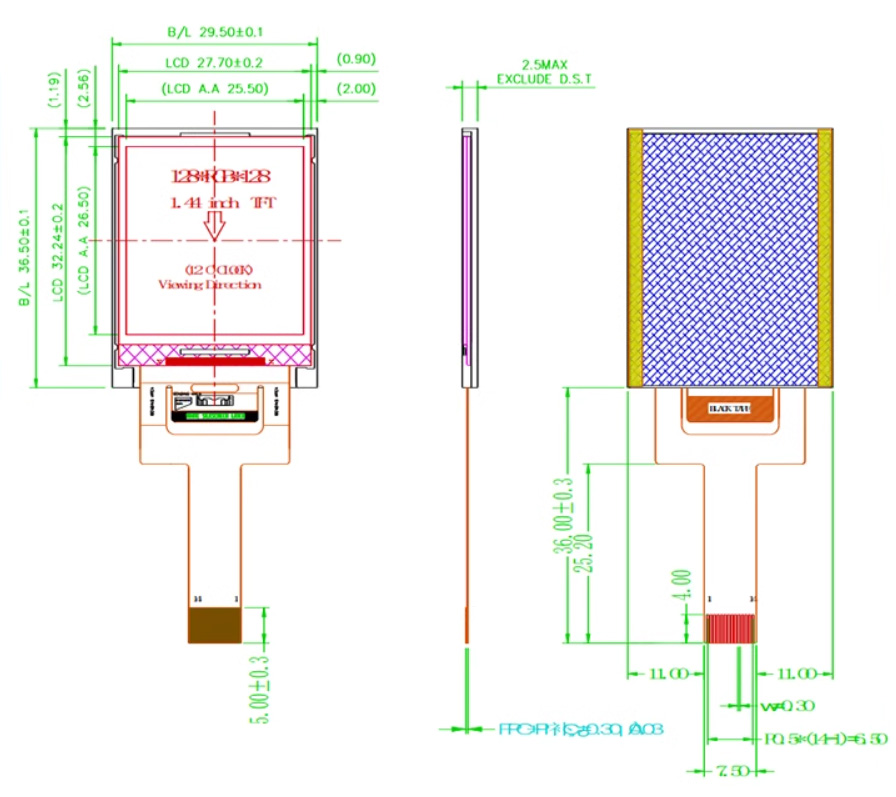

    2.Extenal Dimensions

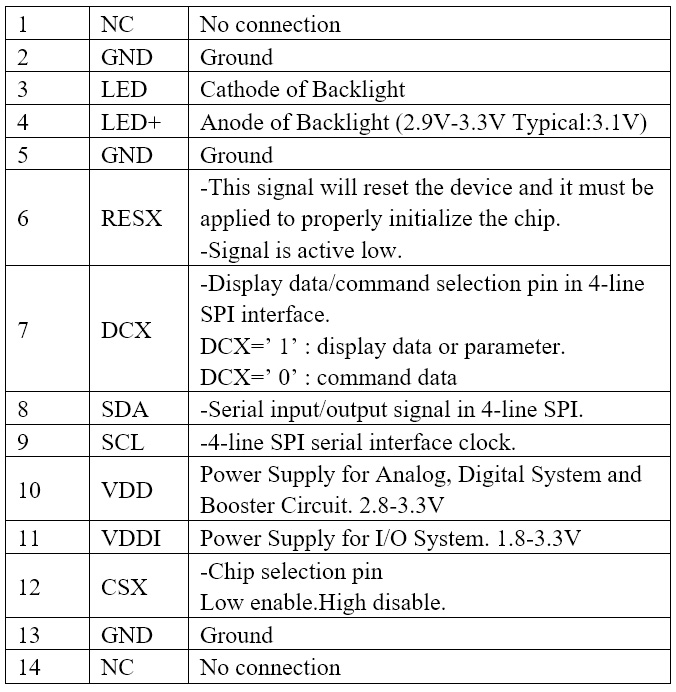

    3.Pin Descriptions

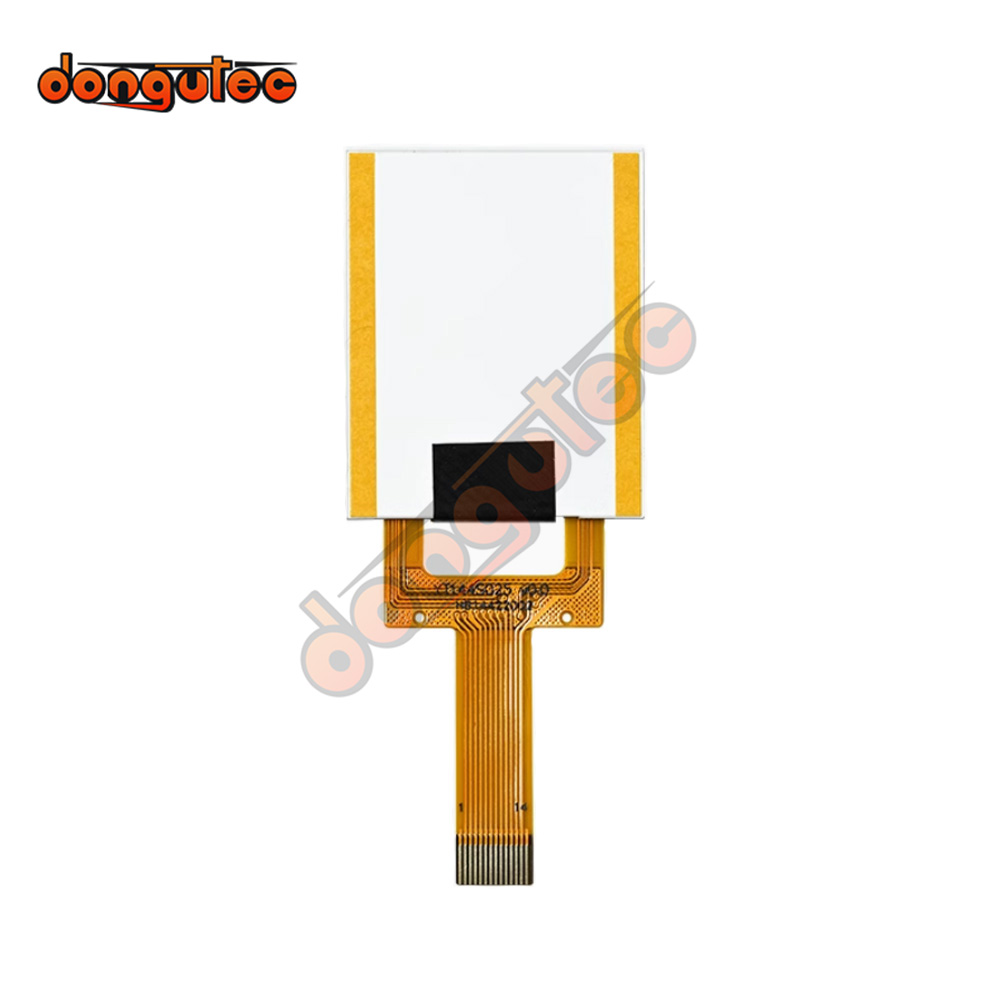

    4.Photo Display







    5.Packing & Delivery
