1.29 inch 30PIN Full Color OLED Screen SSD1351 Drive IC 128(RGB)*96 Parallel / SPI Interface STR-9750EX-9350EX-9950EX-9570EX-9550-7795-9970 Twin)(Playme Silent-Playme Twice)

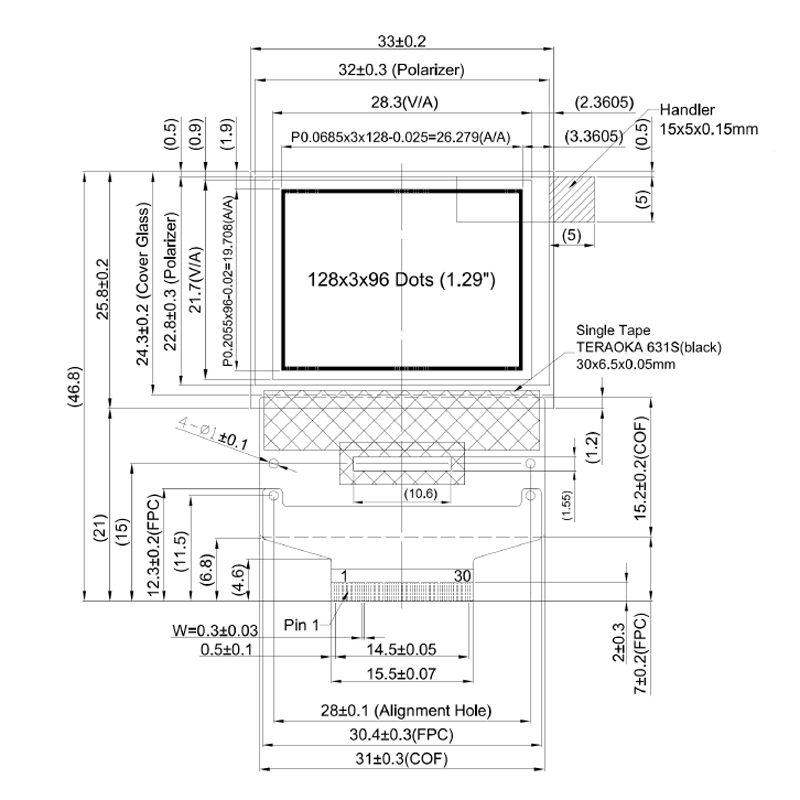

1.Specification parameters

Dot Matrix: 128 (W) x 96 (H) dot
Dot Size: 0.0435 (W) x 0.1855 (H) mm
Dot Pitch: 0.0685 (W) x 0.2055 (H) mm
Aperture Rate: 57 %
Active Area: 26.279 (W) x 19.708 (H) mm
Panel Size: 33 (W) x 25.8 (H) mm
Panel Thickness: 1.02 ± 0.1 mm

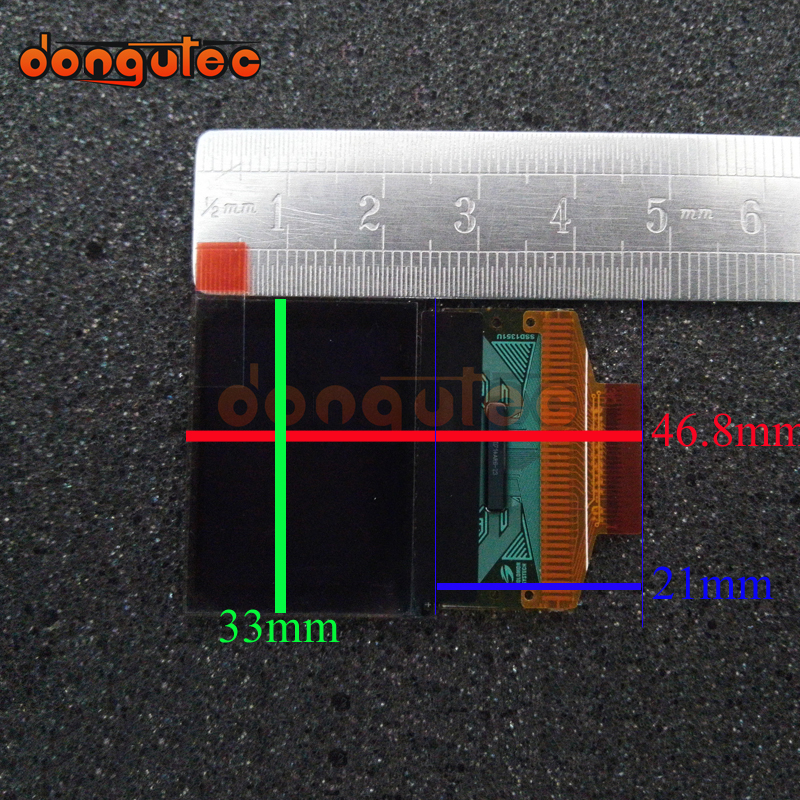

Module Size: 33 (W) x 46.8 (H) x 1.21 (D) mm
Diagonal A/A size: 1.29 inch
Small molecular organic light emitting diode.
Color : 262K color and 65K colors
Panel matrix : 128*96
Driver IC : SSD1351
Excellent quick response time.
Extremely thin thickness for best mechanism design : 1.21mm
High contrast : 2000:1
Wide viewing angle : 160°
8 bits 6800-series parallel interface, 8 bits 8080-series parallel interface, Serial Peripheral Interface.
Wide range of operating temperature : -40 to 70 °C
Anti-glare polarizer.

3.Pin Descriptions

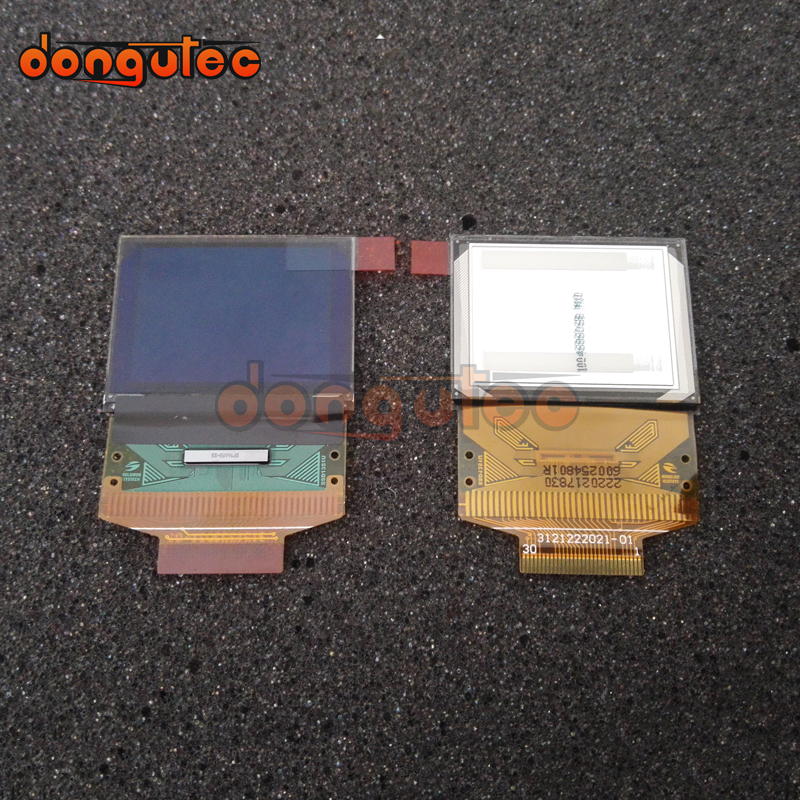

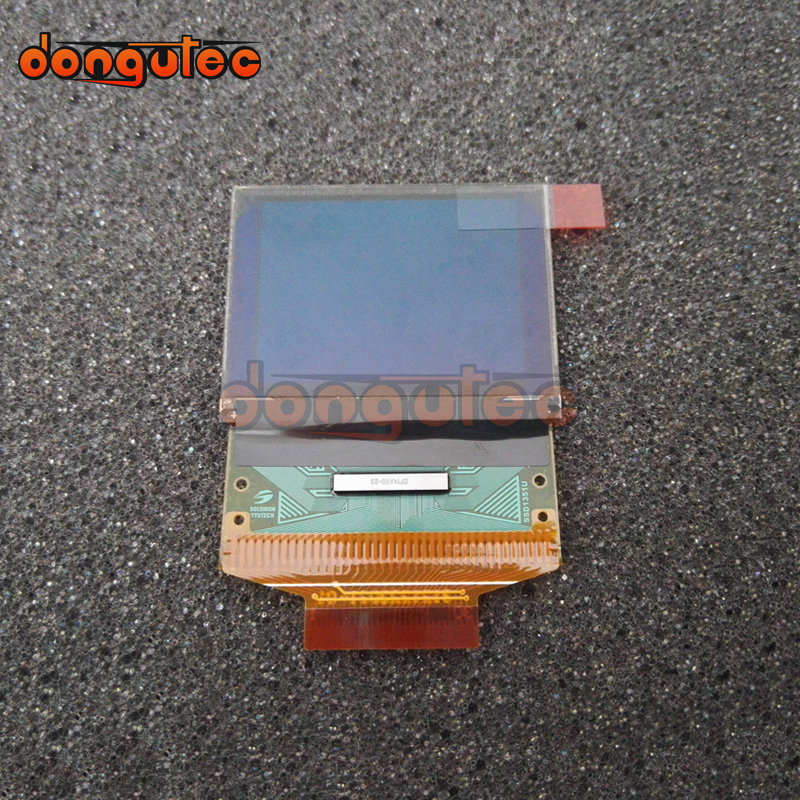

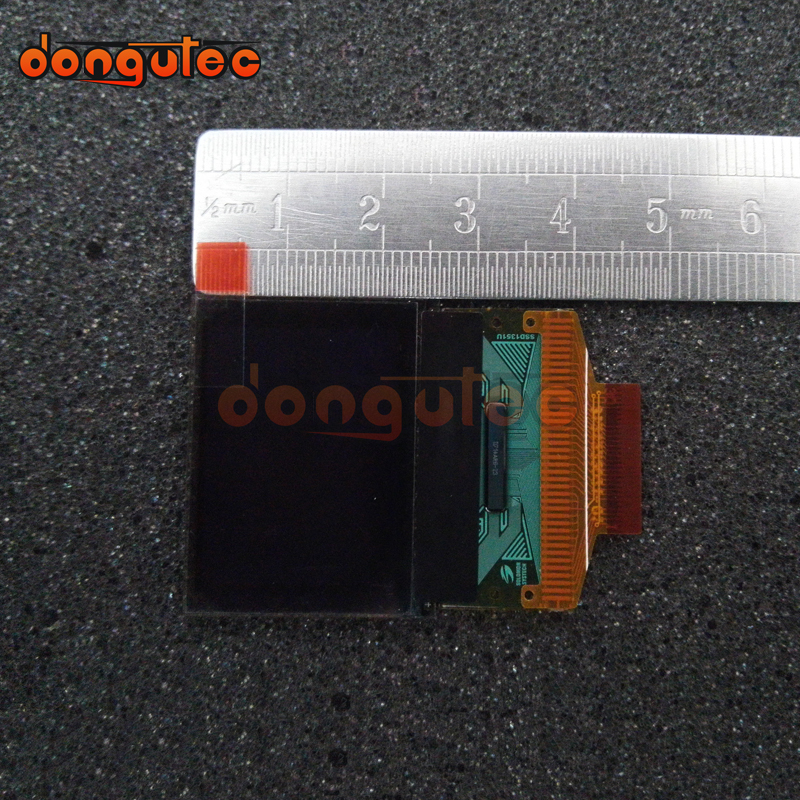

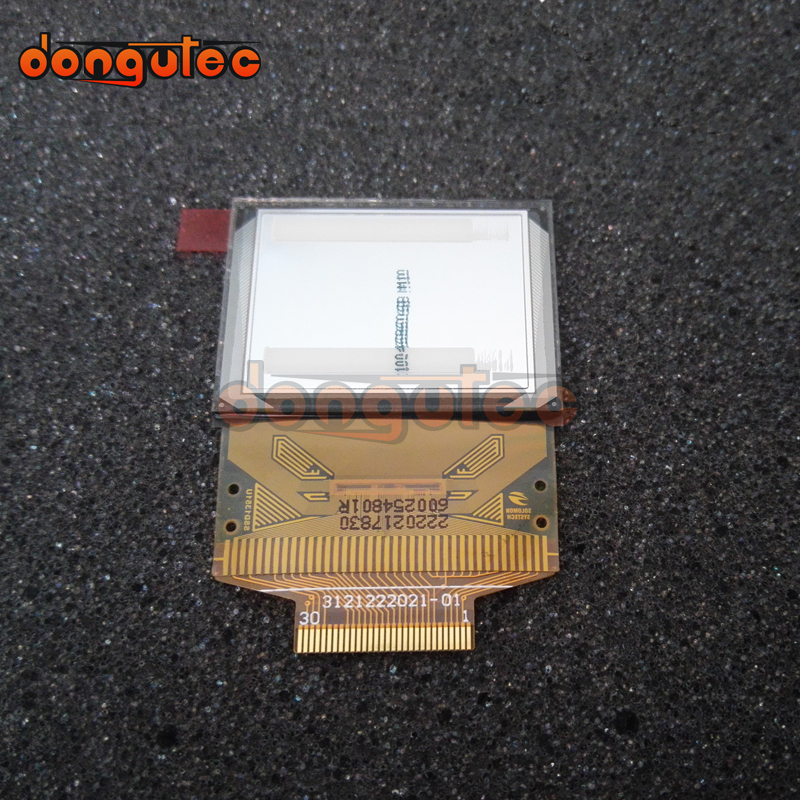

4.Photo Display

5.Packing & Delivery
