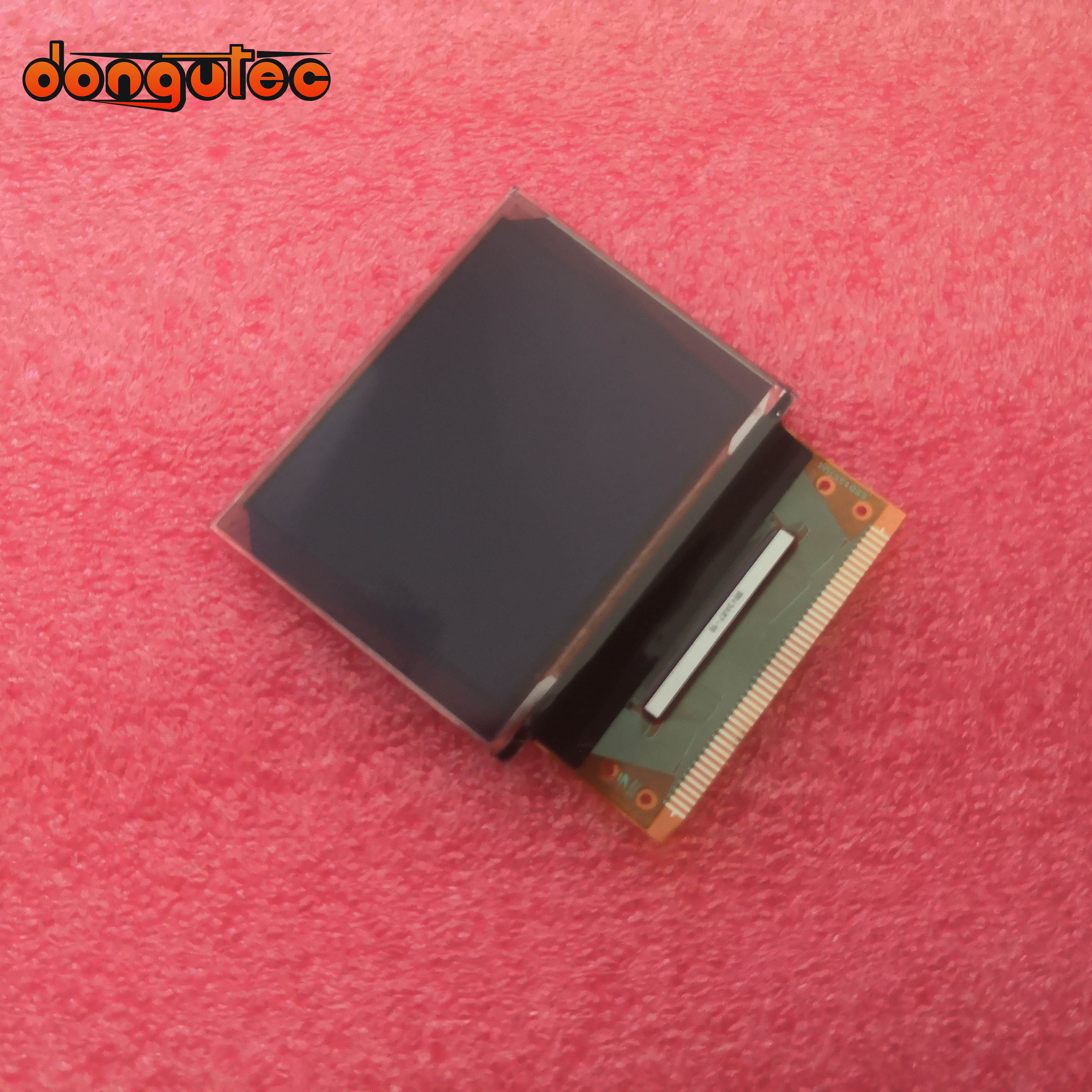

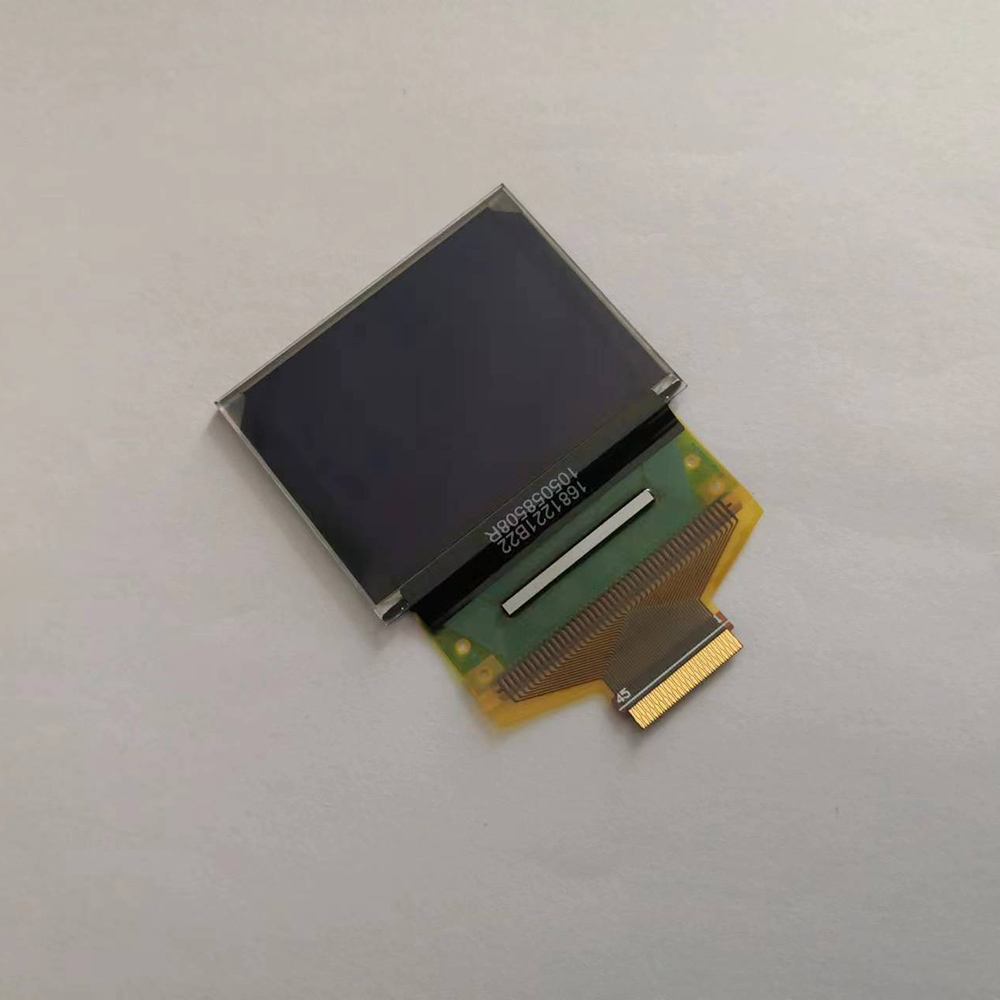

1.77 inch 45PIN Full Color Display OLED Screen SSD1353 Drive IC 160*128 for Control 4 SR-260 Remote Control for Lotoo Xiegu X108G

‐ Small molecular organic light emitting diode.

‐ Color : 262 K color and 65K colors

‐ Panel resolution : 160*128

‐ Driver IC : SSD1353

‐ Excellent Quick response time : 10μs

‐ Extremely thin thickness for best mechanism design. : 2.05 mm

‐ High contrast : 2000:1

‐ Wide viewing angle : 160

‐ Strong environmental resistance.

‐ 8/9/16/18-bits 6800/8080-series Parallel Interface, Serial Peripheral Interface.

‐ Wide range of operating temperature : -40 to 70°C

‐ Anti-glare polarizer.

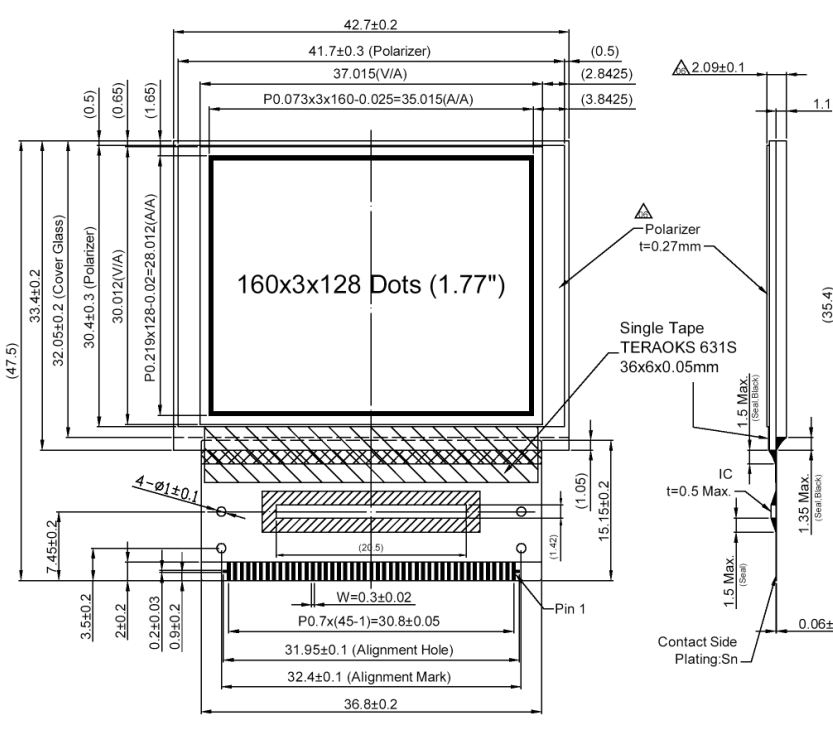

2.Extenal Dimensions





3.Pin Descriptions

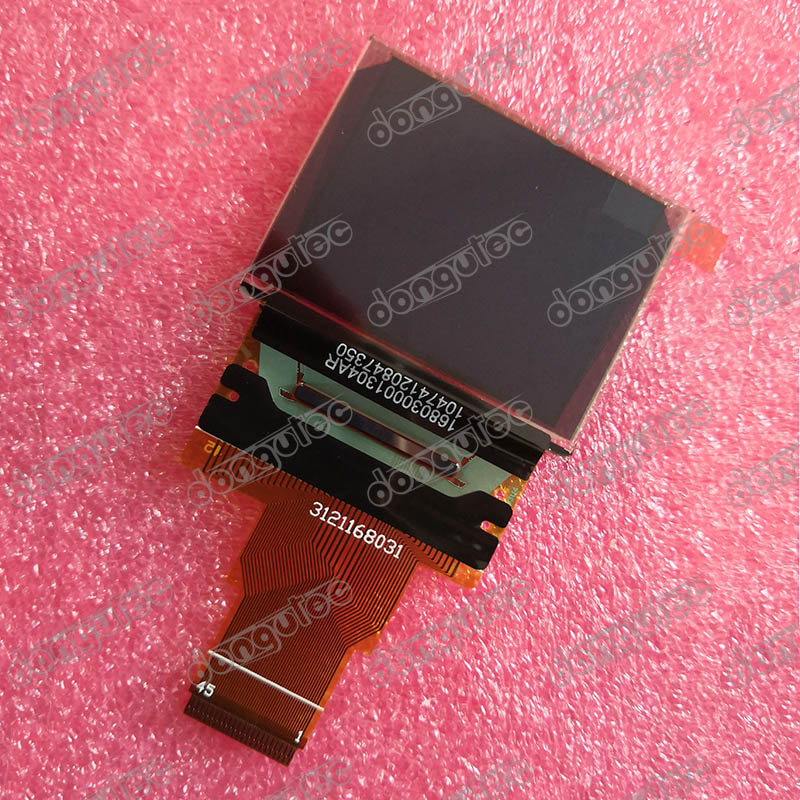

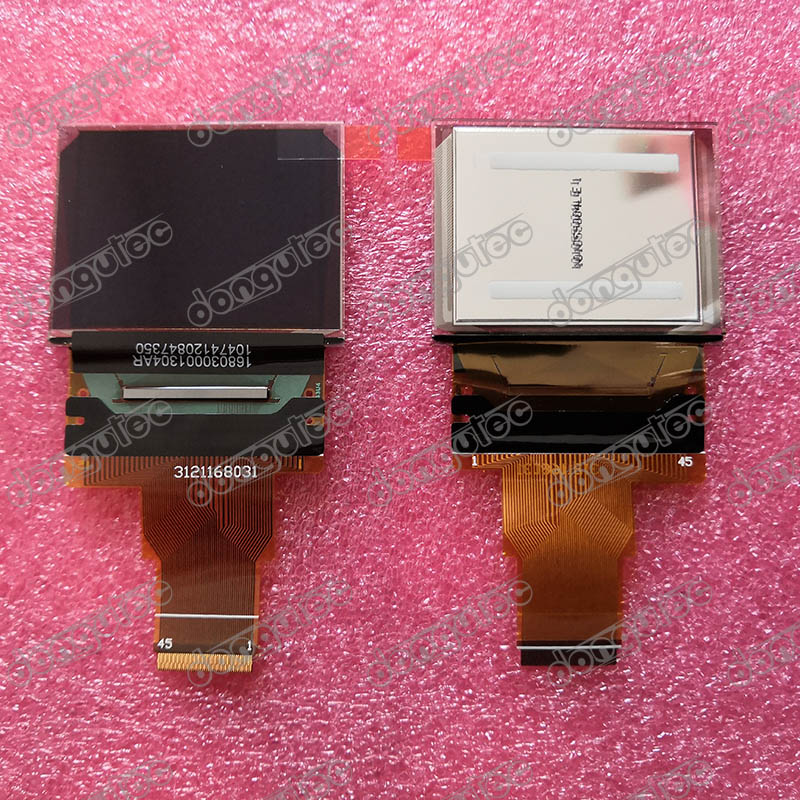

4.Photo Display



5.Packing & Delivery
